General | |
---|---|
Voltage AC (V) () | 600 |
Nominal Frequency (Hz) () | 50 |
Rated Current @ambient (A) () | 25 |
Ambient temperature (°C) () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8532-25-1M5
SAP Number
822803
RT series
Description

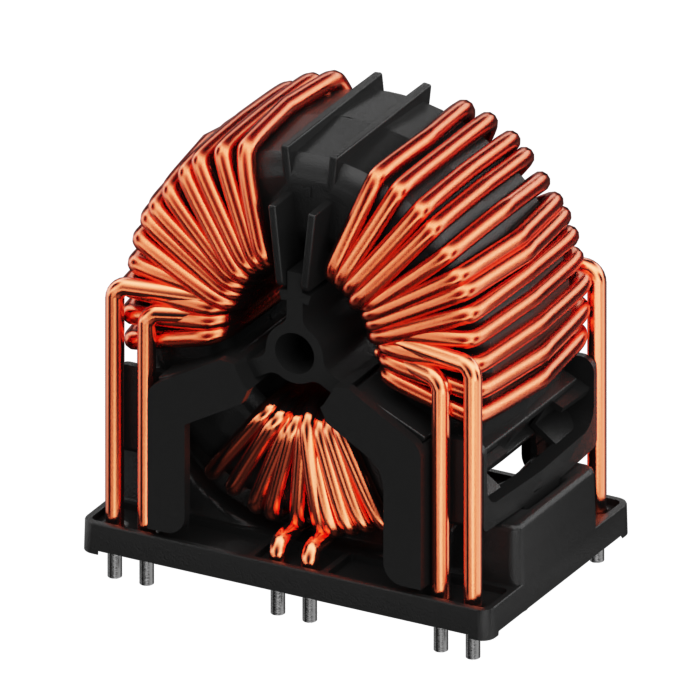

Vertical 25 A PCB three line Common Mode Choke with 1.5 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
Electric | |
---|---|
Input terminal | PCB Pin |
Attenuation | |
---|---|
Inductance L1 (µH) () | 1.5 |
Mechanic | |
---|---|
Length (mm) () | 60 |
Width (mm) () | 38 |
Height (mm) () | 67 |
Volume (cm3) () | 152.76 |
Frame size | 12 |
Schaffner schemes
Mechanical Data Image
Dimensions | |
---|---|
B (mm) | 38 ± 0.2 |
C (mm) | 32 ± 0.4 |
D (mm) | D= 12 ± 0.2 |
G (mm) | G= 0.6 ± 0.1 |
H (mm) | 67 |
L (mm) | 60 ± 0.2 |
M (mm) | 4 |
P (mm) | P= 52 ± 0.4, ФP= 2.4 ± 0.1 |
Q (mm) | 46 ± 0.4 |
R (mm) | 5 ± 0.5 |
