| General | |
|---|---|
| Voltage AC (V) () | 300 |
| Voltage DC (V) () | 425 |
| Nominal Frequency (Hz) () | 50 |
| Rated Current @ambient (A) () | 40 |
| Ambient temperature (°C) () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8522-40-1M2
SAP Number
822800
RT series
Description

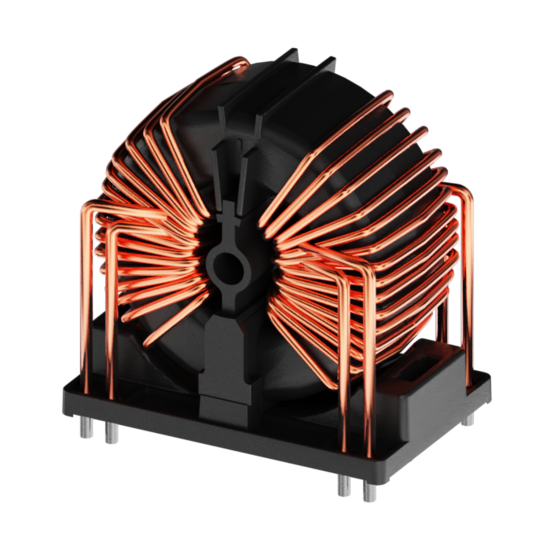

Vertical 40 A PCB two line Common Mode Choke with 1.2 mH Inductance
Type
Gleichtaktunterdrückungsdrosseln
Application
Universell
Phases
Einphasig
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 (µH) () | 1.2 |
| Mechanic | |
|---|---|
| Length (mm) () | 60 |
| Width (mm) () | 38 |
| Height (mm) () | 60 |
| Volume (cm3) () | 136.8 |
| Frame size | 15 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| B (mm) | 38 ± 0.2 |
| C (mm) | 32 ± 0.4 |
| D (mm) | D= 12 ± 0.2 |
| G (mm) | G=0.6 ± 0.1 |
| H (mm) | 60 |
| L (mm) | 60 ± 0.2 |
| M (mm) | 4 |
| P (mm) | P= 52 ± 0.4 ФP= 2.8 ± 0.1 |
| Q (mm) | 46 ± 0.4 |
| R (mm) | 5 ± 0.5 |
