Product Overview

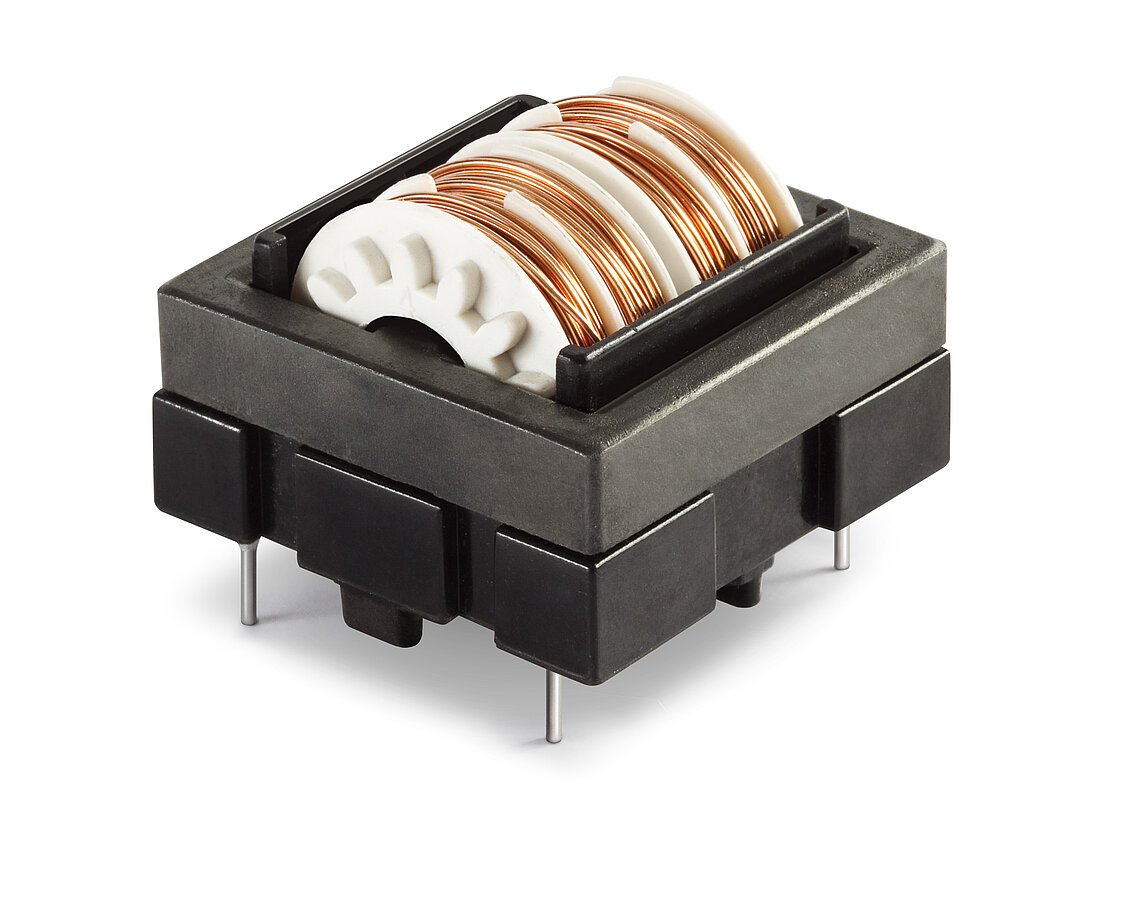

共模抑制扼流圈
- 额定电流高达5 A
- 4种不同的尺寸
- 宽频带衰减特性
- 低漏磁通量
- UL额定材料
- 符合RoHS标准
。
Articles
| Article | Rated Current @ambient (A) | Inductance | Resistance (kΩ) | Input/Output connections (Nm) | Distribution stock | Compare | Read More | |
|---|---|---|---|---|---|---|---|---|
| L1 | Input terminal | |||||||
 | EH20-0.3-02-33M | 0.3 | 33 | 1780 | 02 - PCB Pin | |||
| EH20-0.8-02-5M6 | 0.8 | 5.6 | 245 | 02 - PCB Pin | |||
| EH20-1.2-02-3M3 | 1.2 | 3.3 | 127 | 02 - PCB Pin | |||
| EH20-2.0-02-0M8 | 2 | 0.8 | 38 | 02 - PCB Pin | |||
| EH24-0.8-02-18M | 0.8 | 18 | 438 | 02 - PCB Pin | |||
| EH24-1.5-02-4M5 | 1.5 | 4.5 | 116 | 02 - PCB Pin | |||
| EH24-3.0-02-1M2 | 3 | 1.2 | 29 | 02 - PCB Pin | |||
| EH28-1.0-02-36M | 1 | 36 | 880 | 02 - PCB Pin | |||
| EH28-2.0-02-11M | 2 | 11 | 162 | 02 - PCB Pin | |||
| EH28-4.0-02-2M3 | 4 | 2.3 | 52 | 02 - PCB Pin | |||
| EH35-1.0-02-90M | 1 | 90 | 628 | 02 - PCB Pin | |||
| EH35-3.0-02-10M | 3 | 10 | 72 | 02 - PCB Pin | |||
| EH35-5.0-02-3M6 | 5 | 3.6 | 33 | 02 - PCB Pin | |||
| EV20-0.5-02-18M | 0.5 | 18 | 725 | 02 - PCB Pin | |||
| EV20-1.0-02-3M9 | 1 | 3.9 | 168 | 02 - PCB Pin | |||
| EV20-1.5-02-1M8 | 1.5 | 1.8 | 72 | 02 - PCB Pin | |||
| EV24-0.5-02-44M | 0.5 | 44 | 1250 | 02 - PCB Pin | |||
| EV24-1.0-02-10M | 1 | 10 | 244 | 02 - PCB Pin | |||
| EV24-2.0-02-2M5 | 2 | 2.5 | 62 | 02 - PCB Pin | |||
| EV24-4.0-02-0M5 | 4 | 0.5 | 16 | 02 - PCB Pin | |||
| EV28-1.5-02-20M | 1.5 | 20 | 282 | 02 - PCB Pin | |||
| EV28-3.0-02-5M0 | 3 | 5 | 79 | 02 - PCB Pin | |||
| EV28-5.0-02-1M1 | 5 | 1.1 | 27 | 02 - PCB Pin | |||
| EV35-2.0-02-20M | 2 | 20 | 150 | 02 - PCB Pin | |||
| EV35-4.0-02-5M0 | 4 | 5 | 53 | 02 - PCB Pin | |||
| EV35-5.0-02-3M6 | 5 | 3.6 | 33 | 02 - PCB Pin |
Features and Benefits
额定电流高达5 A
Typical Applications
开关电源的输入滤波器
Technical Specifications
额定电流
0.3 to 5 A @ 50°C
过电流
1.5x Inominal for 1 minute, once per hour
工作频率
DC to 400 Hz
额定电感
0.5 to 90 MILLIHENRY
抵抗力
Tolerance max. ±15% @ 25°C
≤20 mΩ, 1 A
>20 mΩ ≤200 mΩ, 100 mA
>200 mΩ ≤2 V, 10 mA
电气特性
@ 25°C ±2°C
工作电压
250 VAC
温度范围（操作和存储）
-25°C to +100°C (25/100/21)
可燃性对应于
UL 94 V-0
MTBF (Mil-HB-217F)
>5,000,000 h @ 50°C/250 V
Typical electrical schematic
Approvals & Compliances
