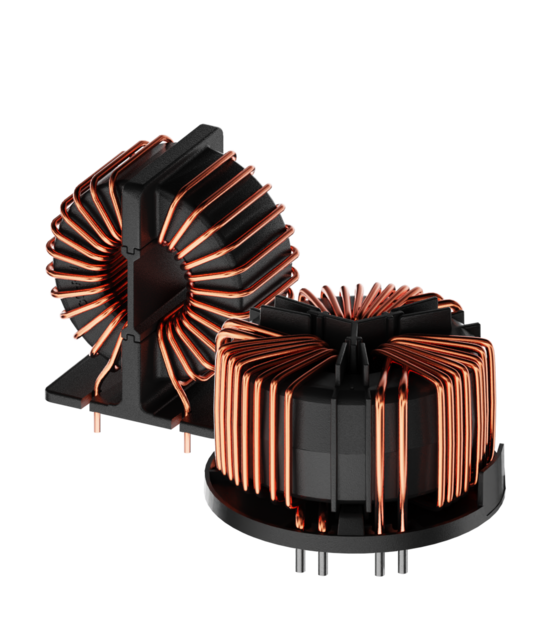

EMC / RFI Chokes RT series

共模电感

RT series

共模电感

  • 额定电流为6至20 A
  • 高达600 VAC和VDC
  • 2线和3线配置
  • 水平和垂直PCB安装类型
  • 加固的饱和和热行为
  • 开放式结构,用于强制和对流冷却
  • 直接的引脚布局,便于PCB设计

Articles

Article Rated Current @ambient (A) Inductance Input/Output connections (Nm) Distribution stock Compare Read More
L1 Input terminal
RT8122-10-6M0RT8122-10-6M0 10602 - PCB Pin
RT8122-12-5M0RT8122-12-5M0 12502 - PCB Pin
RT8122-16-4M0RT8122-16-4M0 16402 - PCB Pin
RT8122-20-3M0RT8122-20-3M0 20302 - PCB Pin
RT8122-32-1M5RT8122-32-1M5 321.502 - PCB Pin
RT8122-40-1M2RT8122-40-1M2 401.202 - PCB Pin
RT8122-25-2M5RT8122-25-2M5 252.502 - PCB Pin
RT8122-50-1M0RT8122-50-1M0 50102 - PCB Pin
RT8122-6-10M0RT8122-6-10M0 61002 - PCB Pin
RT8122-63-0M5RT8122-63-0M5 630.502 - PCB Pin
RT8122-8-8M0RT8122-8-8M0 8802 - PCB Pin
RT8132-10-4M0RT8132-10-4M0 10402 - PCB Pin
RT8132-12-3M6RT8132-12-3M6 123.602 - PCB Pin
RT8132-16-3M0RT8132-16-3M0 16302 - PCB Pin
RT8132-20-2M5RT8132-20-2M5 202.502 - PCB Pin
RT8132-25-1M5RT8132-25-1M5 251.502 - PCB Pin
RT8132-32-1M2RT8132-32-1M2 321.202 - PCB Pin
RT8132-40-0M7RT8132-40-0M7 400.702 - PCB Pin
RT8132-50-0M5RT8132-50-0M5 500.502 - PCB Pin
RT8132-63-0M3RT8132-63-0M3 630.302 - PCB Pin
RT8132-6-6M0RT8132-6-6M0 6602 - PCB Pin
RT8132-8-4M8RT8132-8-4M8 84.802 - PCB Pin
RT8522-10-6M0RT8522-10-6M0 10602 - PCB Pin
RT8522-12-5M0RT8522-12-5M0 12502 - PCB Pin
RT8522-16-4M0RT8522-16-4M0 16402 - PCB Pin
RT8522-20-3M0RT8522-20-3M0 20302 - PCB Pin
RT8522-32-1M5RT8522-32-1M5 321.502 - PCB Pin
RT8522-40-1M2RT8522-40-1M2 401.202 - PCB Pin
RT8522-50-1M0RT8522-50-1M0 50102 - PCB Pin
RT8522-25-2M5RT8522-25-2M5 252.502 - PCB Pin
RT8522-6-10M0RT8522-6-10M0 61002 - PCB Pin
RT8522-63-0M5RT8522-63-0M5 630.502 - PCB Pin
RT8522-8-8M0RT8522-8-8M0 8802 - PCB Pin
RT8532-10-4M0RT8532-10-4M0 10402 - PCB Pin
RT8532-12-3M6RT8532-12-3M6 123.602 - PCB Pin
RT8532-16-3M0RT8532-16-3M0 16302 - PCB Pin
RT8532-20-2M5RT8532-20-2M5 202.502 - PCB Pin
RT8532-25-1M5RT8532-25-1M5 251.502 - PCB Pin
RT8532-32-1M2RT8532-32-1M2 321.202 - PCB Pin
RT8532-40-0M7RT8532-40-0M7 400.702 - PCB Pin
RT8532-50-0M5RT8532-50-0M5 500.502 - PCB Pin
RT8532-63-0M3RT8532-63-0M3 630.302 - PCB Pin
RT8532-6-6M0RT8532-6-6M0 6602 - PCB Pin
RT8532-8-4M8RT8532-8-4M8 84.802 - PCB Pin

Features and Benefits

成本效益高的PCB设计,最高可达32A,并带有强制冷却功能*
尺寸紧凑,重量轻
漏磁通量低
出色的绕组绝缘
标准化的引脚布局
广泛的额定电感量
根据要求定制特定版本

Typical Applications

用于中型功率范围驱动器、光伏逆变器、快速充电器、电动汽车充电站、UPS和开关模式电源的交流和直流滤波
具有低漏电流噪声或提高抗电网干扰能力的滤波器
电子设备、自动化和(工业)LED照明
通信设备
医疗和实验室设备
变频器

Technical Specifications

额定电流

6 to 63 A @ 60°C

工作频率

DC to 400 Hz

爬电距离和间隙距离

Creepage & Clearance (2-line): ≥ 3.5 mm (Coil - Coil) / ≥ 3.0 mm (Coil-Core)

Creepage & Clearance (3-line): ≥ 6.3 mm (Coil - Coil) / ≥ 5.5 mm (Coil-Core)

高电位测试电压

3 kV DC 3s (coil to coil)

Repetition with max. 80% of the HV test voltage

额定电感

0.3 to 6 mH (3-line)

0.5 to 10 mH (2-line)

工作电压

300 VAC/425 VDC (2-line)

600 VAC (3-line)

过电压类别

III (acc. IEC 60664-1)

污染程度

PD2 (acc. IEC60664-1)

杂散电感

Max. 1% of rated inductance (@ 100 kHz 1 V, 0 A)

温度范围(操作和存储)

-40°C to +100°C (6 to 20 A) / -40°C to +125°C (25 to 63 A)

气候等级

40/100/56 (acc. IEC 60068-1) (6 to 20 A) / 40/125/56 (acc. IEC 60068-1) (25 to 63 A)

海拔高度

2'000 m, current and voltage derating above

可燃性对应于

UL 94 V0

振动和冲击

3M4 (according IEC 60721-3-3)

与之对应的设计

UL/IEC 60938-1/-2

UL1446 (>20A)

MTBF (Mil-HB-217F)

>2,000,000 h @ 60°C/300 V

Approvals & Compliances

RoHS Label
UL 1446 E332676 - Insulation system SCH-155(F)-C

EIS applicable for currents > 20A
