FN2230-300-99-C2022-R99

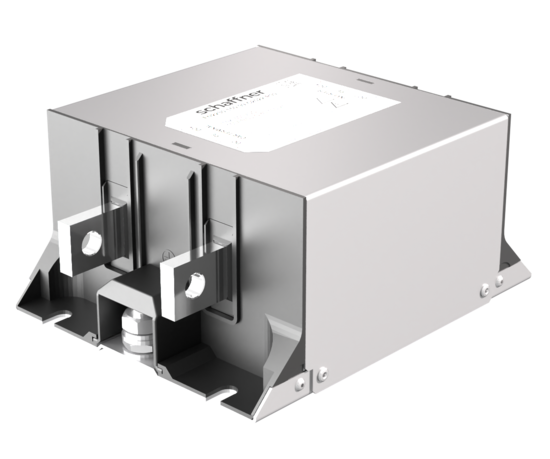

300 A EMC filter with bus bars

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

FN2230-300-99-C2022-R99

SAP Number

822422
FN2220, FN2230 and FN2240

Description

300 A EMC filter with bus bars

Type

Chassis mount

Phases

DC
Distribution stock
General
Voltage AC (V) () 500
Nominal Frequency (Hz) () DC
Rated Current @ambient (A) () 300
Ambient temperature (°C) () 55
Electric
Input terminal Bus bar
Output terminal Threaded stud
Resistance (kΩ) () 10
Attenuation
Capacitance Cy1 (nF) () 150
Capacitance Cy2 (nF) () 330
CM attenuation @ 150kHz (dB) () 50
DM attenuation @ 150kHz (dB) () 43
Mechanic
Length (mm) () 149
Width (mm) () 163
Height (mm) () 95
Volume (cm3) () 2307
Weight (g) () 2640

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 145
B (mm) 163
C (mm) 95
D (mm) 210
E (mm) 182
F (mm) 110
G (mm) 9
L (mm) 200
P (mm) 67
U (mm) 48
V (mm) 25
W (mm) 4
X (mm) 12.5
Z (mm) 11
