| General | |
|---|---|
| Voltage AC (V) () | 300 |
| Voltage DC (V) () | 425 |
| Nominal Frequency (Hz) () | 50 |
| Rated Current @ambient (A) () | 40 |
| Ambient temperature (°C) () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8122-40-1M2
SAP Number
822791
RT series
Description

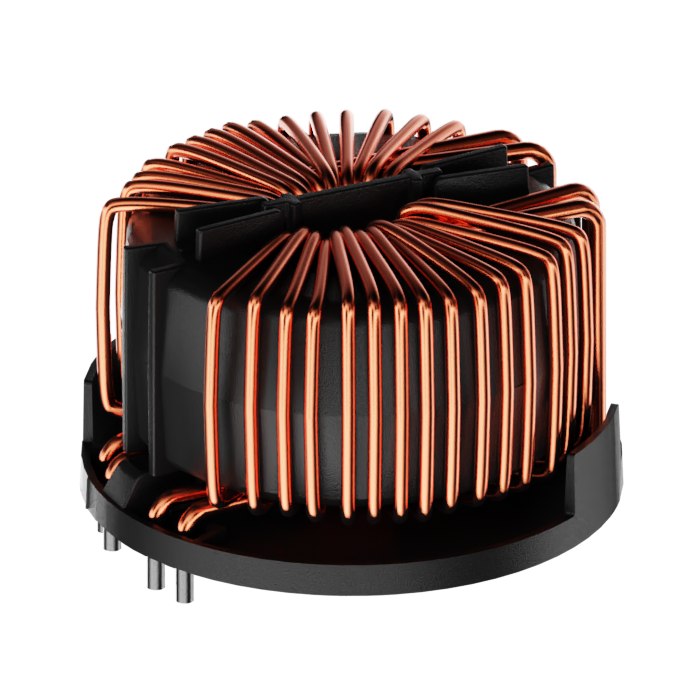

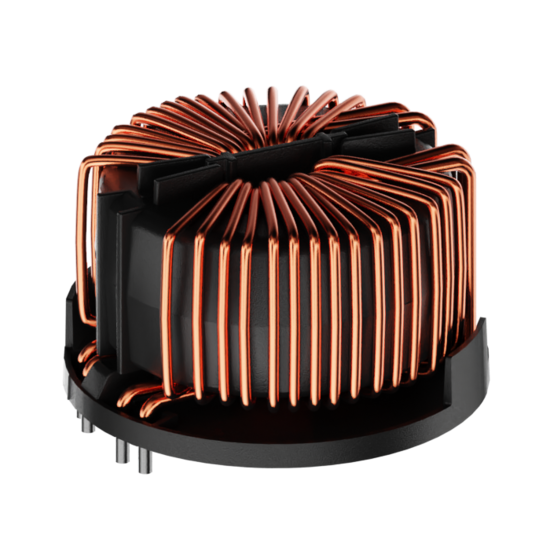

Horizontal 40 A PCB two line Common Mode Choke with 1.2 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
1 Phase
| Electric | |
|---|---|
| Input terminal | PCB Pin |
| Attenuation | |
|---|---|
| Inductance L1 (µH) () | 1.2 |
| Mechanic | |
|---|---|
| Length (mm) () | 62 |
| Width (mm) () | 62 |
| Height (mm) () | 37 |
| Volume (cm3) () | 142.228 |
| Frame size | 13 |
Schaffner schemes
Mechanical Data Image
| Dimensions | |
|---|---|
| D (mm) | øD= 62 ± 0.2 |
| E (mm) | øЕ = 55.4 ± 0.2 |
| F (mm) | f= 150° ± 10° |
| G (mm) | G=0.6 ± 0.1 |
| H (mm) | 37 |
| L (mm) | 5 ± 0.5 |
| P (mm) | ФP= 2.8 ± 0.1 |
