RT8132-16-3M0

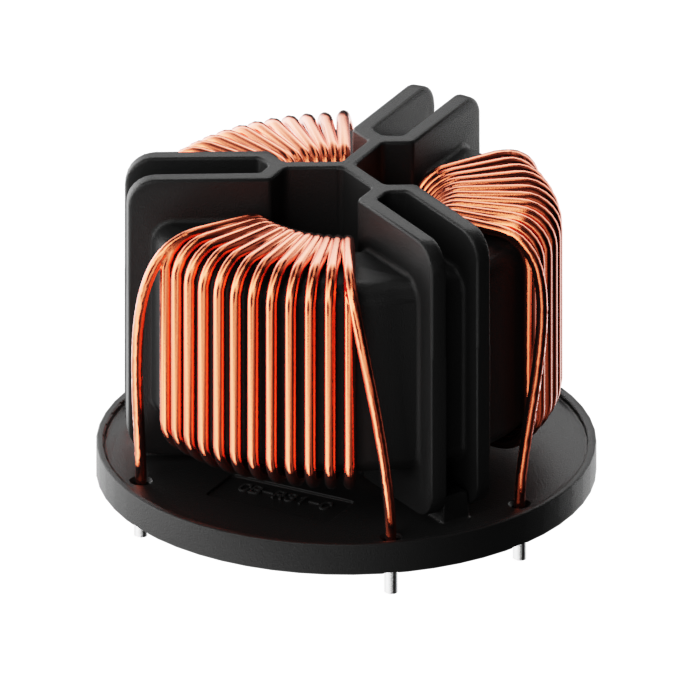

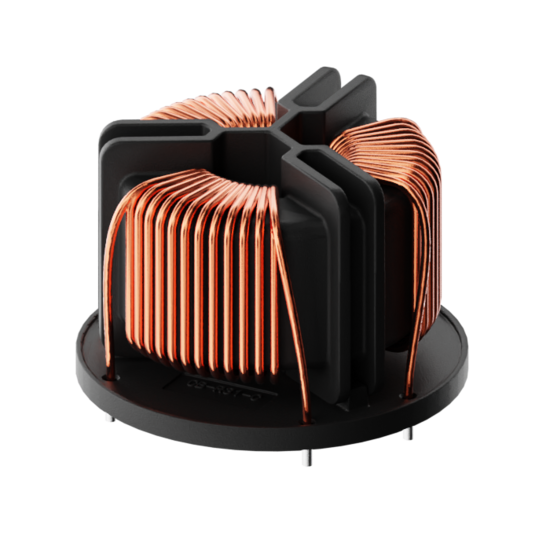

Horizontal 16 A PCB three line Common Mode Choke with 3 mH Inductance

Most important files and data about the article you can take over here.

Downloads

General Information

Designation

RT8132-16-3M0

SAP Number

816971
RT series

Description

Horizontal 16 A PCB three line Common Mode Choke with 3 mH Inductance

Type

PCB Common Mode Choke

Application

General

Phases

3 Phases
Distribution stock
General
Voltage AC (V) () 600
Nominal Frequency (Hz) () 50
Rated Current @ambient (A) () 16
Ambient temperature (°C) () 60
Electric
Input terminal PCB Pin
Attenuation
Inductance L1 (µH) () 3
Mechanic
Length (mm) () 57
Width (mm) () 57
Height (mm) () 37
Volume (cm3) () 120.213
Frame size 8

Schaffner schemes

Mechanical Data Image

Dimensions
A (mm) () 49 ± 0.5
D (mm) ØD = 57 ØD1= 54 ± 0.5 ØD2= 2.3 ØD3= 2.5
H (mm) 37
