General | |
---|---|
Voltage AC (V) () | 600 |
Nominal Frequency (Hz) () | 50 |
Rated Current @ambient (A) () | 40 |
Ambient temperature (°C) () | 60 |
Most important files and data about the article you can take over here.
Downloads
General Information
Designation
RT8132-40-0M7
SAP Number
822795
RT series
Description

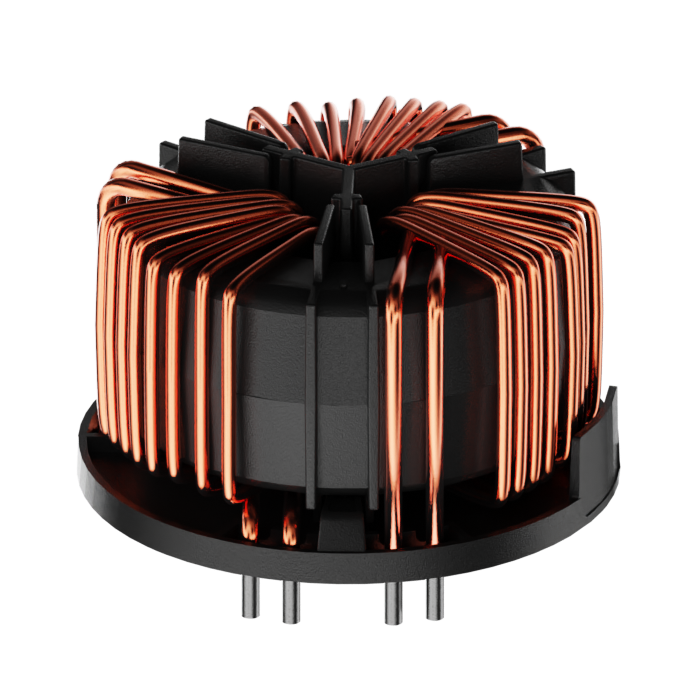

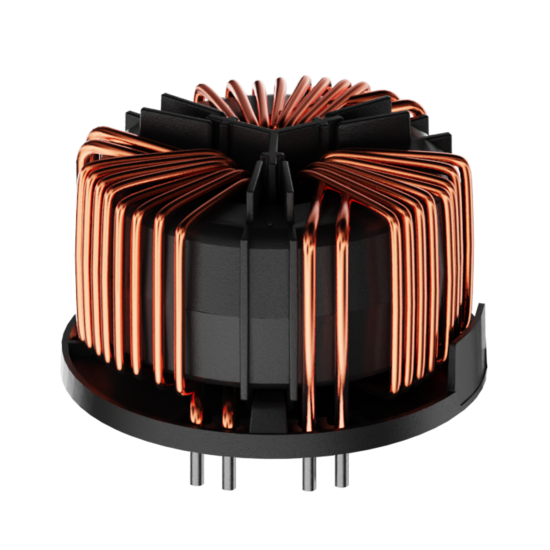

Horizontal 40 A PCB three line Common Mode Choke with 0.7 mH Inductance
Type
PCB Common Mode Choke
Application
General
Phases
3 Phases
Electric | |
---|---|
Input terminal | PCB Pin |
Attenuation | |
---|---|
Inductance L1 (µH) () | 0.7 |
Mechanic | |
---|---|
Length (mm) () | 66 |
Width (mm) () | 66 |
Height (mm) () | 42 |
Volume (cm3) () | 182.952 |
Frame size | 18 |
Schaffner schemes

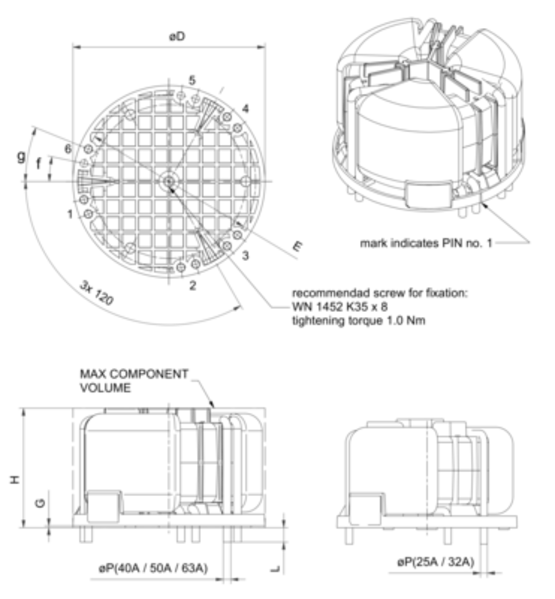

Mechanical Data Image

Dimensions | |
---|---|
D (mm) | øD= 66 ± 0.2 |
E (mm) | øЕ = 59.8 ± 0.2 |
F (mm) | f= 120° ± 10° |
G (mm) | G=0.6 ± 0.1 g= 220° ± 10° |
H (mm) | 42 |
L (mm) | 5 ± 0.5 |
P (mm) | ФP= 1.9 ± 0.2 |
